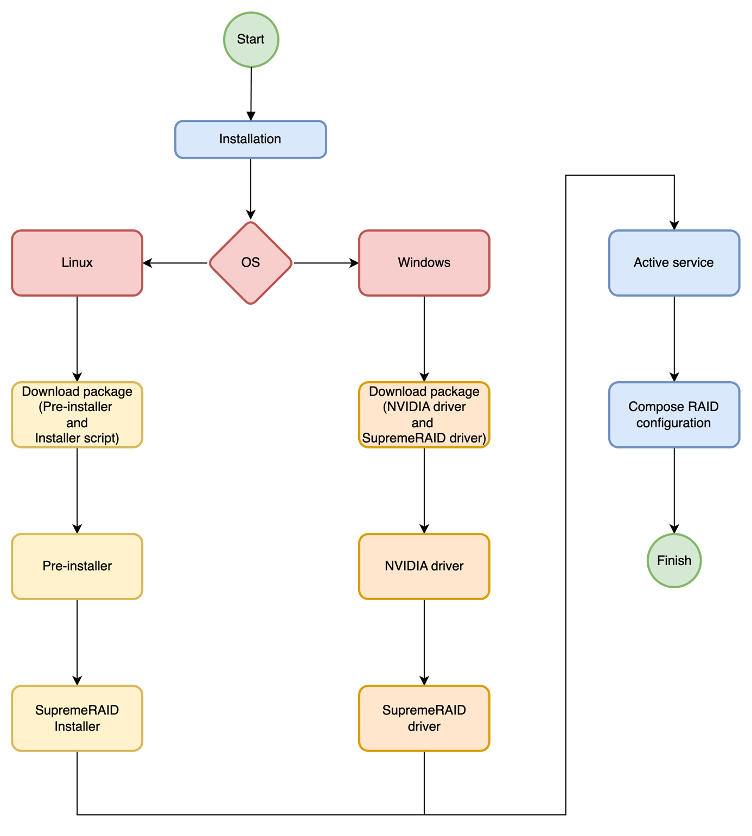

Installation Guide for SupremeRAID driver
Environment
Issue
Resolution
Linux
Step 1: Downloading the Required Scripts (https://docs.graidtech.com/#supremeraidtm-driver-release-notes)
Visit the Graid Technology Inc download portal and download the following scripts:
- Pre-installer: This script includes the Nvidia driver and all necessary environment setup scripts.
- Installer: This script contains the SupremeRAID driver installation package, which automatically detects the Linux distribution and installs the package accordingly.
Step 2: Executing the Pre-installer
Run the Pre-installer script to install the Nvidia driver and download the required packages. Once the setup is complete, the system will prompt for a reboot.
Step 3: Executing the Installer
After rebooting, execute the Installer script to install the SupremeRAID driver. The Installer will detect the Linux distribution and install the package accordingly. Following the installation, the system will request another reboot.
Step 4: Applying the License Key
Upon the system's reboot, apply the license key to activate the SupremeRAID license. This step ensures full functionality and access to SupremeRAID's features.
Note: Ensure that you have administrative privileges to execute the installation scripts and apply the license key. Additionally, verify compatibility with your Linux distribution before proceeding with the installation process. For any assistance or queries, refer to the Graid Technology Inc support documentation or contact their customer support team.
Windows
Step 1: Downloading the Required Software
Navigate to the Graid Technology Inc download portal using the provided link (https://docs.graidtech.com/#supremeraidtm-driver-release-notes) and download the following software:
- NVIDIA driver: This is the Nvidia Windows driver required for the proper functioning of SupremeRAID.
- Installer: This is the installer for the SupremeRAID Windows driver.
Step 2: Executing the NVIDIA Driver Installation
Run the downloaded Nvidia Windows driver installer to install the Nvidia driver. Follow the on-screen instructions to complete the installation process. Once the setup is complete, the system will prompt for a reboot.
Step 3: Executing the SupremeRAID Installer
After rebooting the system, execute the downloaded Installer script to install the SupremeRAID driver. Follow the on-screen prompts to complete the installation process. Upon completion, the system will request another reboot.
Step 4: Applying the License Key
After the system reboots, apply the provided license key to activate the SupremeRAID license. Follow the instructions provided with the license key. Note that this step will also require a reboot to ensure full functionality and access to SupremeRAID's features.
Note: Ensure that you have administrative privileges to execute the installation scripts and apply the license key. Additionally, verify compatibility with your Windows version before proceeding with the installation process. For any assistance or queries, refer to the Graid Technology Inc support documentation or contact their customer support team.
